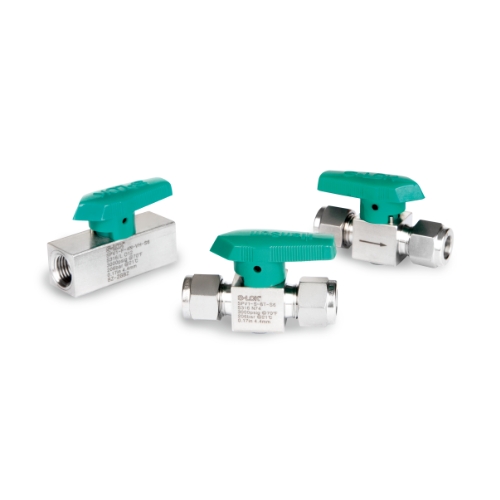

S-LOK Ball&Plug Valves SPV Series
SPV Series, Plug Valve, Tube O.D 1/8in
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | End 1 Size | End 1 Type | End 2 Size | End 2 Type | Body Material | Max Pressure Rating | Seal Material | Part NO |
|---|---|---|---|---|---|---|---|---|---|
| SPV1-S-2T-S6 |
|
1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-S-2T-S6 |
| SPV1-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-S-4T-S6 |
| SPV1-S-6T-S6 |
|
3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-S-6T-S6 |
| SPV1-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-S-6M-S6 |
| SPV1-M-2N-S6 |
|
1/8 | Male NPT | 1/8 | Male NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-M-2N-S6 |
| SPV1-M-4N-S6 |
|
1/4 | Male NPT | 1/4 | Male NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-M-4N-S6 |
| SPV1-MS-4N4T-S6 |
|
1/4 | Male NPT | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-MS-4N4T-S6 |
| SPV1-MF-4N-S6 |
|
1/8 | Male NPT | 1/8 | Female NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-MF-4N-S6 |
| SPV1-F-2N-S6 |
|
1/8 | Female NPT | 1/8 | Female NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-F-2N-S6 |
| SPV1-F-4N-S6 |
|
1/4 | Female NPT | 1/4 | Female NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-F-4N-S6 |
| SPV1-F-4R-S6 |
|
1/4 | Female PT | 1/4 | Female PT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV1-F-4R-S6 |
| SPV2-S-6T-S6 |
|
3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-S-6T-S6 |
| SPV2-S-8T-S6 |
|
1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-S-8T-S6 |
| SPV2-S-8M-S6 |
|
8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-S-8M-S6 |
| SPV2-S-10M-S6 |
|
10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-S-10M-S6 |
| SPV2-S-12M-S6 |
|
12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-S-12M-S6 |
| SPV2-M-8N-S6 |
|
1/2 | Male NPT | 1/2 | Male NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-M-8N-S6 |
| SPV2-F-6N-S6 |
|
3/8 | Female NPT | 3/8 | Female NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-F-6N-S6 |
| SPV2-F-8N-S6 |
|
1/2 | Female NPT | 1/2 | Female NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-F-8N-S6 |
| SPV2-F-8R-S6 |
|
1/2 | Female PT | 1/2 | Female PT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | PTFE Coated VITON | SPV2-F-8R-S6 |
معرفی محصول
مشخصات فنی
| End 1 Size | 1/2, 1/4, 1/8, 10mm, 12mm, 3/8, 6mm, 8mm |
|---|---|
| End 1 Type | Female NPT, Female PT, Male NPT, S-LOK Tube Fitting |
| End 2 Size | 1/2, 1/4, 1/8, 10mm, 12mm, 3/8, 6mm, 8mm |
| End 2 Type | Female NPT, Female PT, Male NPT, S-LOK Tube Fitting |
| Body Material | Stainless Steel 316 |
| Max Pressure Rating | 3000 PSI (206 BAR) @100℉(37℃) |
| Seal Material | PTFE Coated VITON |
| Part NO | SPV1-F-2N-S6, SPV1-F-4N-S6, SPV1-F-4R-S6, SPV1-M-2N-S6, SPV1-M-4N-S6, SPV1-MF-4N-S6, SPV1-MS-4N4T-S6, SPV1-S-2T-S6, SPV1-S-4T-S6, SPV1-S-6M-S6, SPV1-S-6T-S6, SPV2-F-6N-S6, SPV2-F-8N-S6, SPV2-F-8R-S6, SPV2-M-8N-S6, SPV2-S-10M-S6, SPV2-S-12M-S6, SPV2-S-6T-S6, SPV2-S-8M-S6, SPV2-S-8T-S6 |
| نوع شیرآلات | Ball&Plug |
