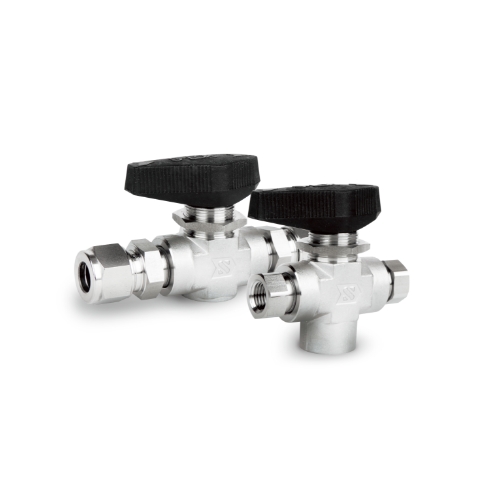

S-LOK Ball&Plug Valves STBV Series
STBV30 Series, Trunnion Ball Valve, Straight Type, Nylon Handle, Female NPT 1/8in
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | End 1 Size | End 1 Type | End 2 Size | End 2 Type | Body Material | Max Pressure Rating | Seal Material | Seat Material | Part NO |
|---|---|---|---|---|---|---|---|---|---|---|
| STBV-F-2N-S6 |
|
1/8 | Female NPT | 1/8 | Female NPT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-F-2N-S6 |
| STBV-F-4N-S6 |
|
1/4 | Female NPT | 1/4 | Female NPT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-F-4N-S6 |
| STBV-F-8N-S6 |
|
1/2 | Female NPT | 1/2 | Female NPT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-F-8N-S6 |
| STBV-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-S-4T-S6 |
| STBV-S-6T-S6 |
|
3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-S-6T-S6 |
| STBV-S-8T-S6 |
|
1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-S-8T-S6 |
| STBV-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-S-6M-S6 |
| STBV-S-8M-S6 |
|
8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-S-8M-S6 |
| STBV-S-10M-S6 |
|
10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-S-10M-S6 |
| STBV-S-12M-S6 |
|
12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-S-12M-S6 |
| STBV-3B-F-2N-S6 |
|
1/8 | Female NPT | 1/8 | Female NPT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-F-2N-S6 |
| STBV-3B-F-4N-S6 |
|
1/4 | Female NPT | 1/4 | Female NPT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-F-4N-S6 |
| STBV-3B-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-S-4T-S6 |
| STBV-3B-S-6T-S6 |
|
3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-S-6T-S6 |
| STBV-3B-S-8T-S6 |
|
1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-S-8T-S6 |
| STBV-3B-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-S-6M-S6 |
| STBV-3B-S-8M-S6 |
|
8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-S-8M-S6 |
| STBV-3B-S-10M-S6 |
|
10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-S-10M-S6 |
| STBV-3B-S-12M-S6 |
|
12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | PTFE | PCTFE | STBV-3B-S-12M-S6 |
معرفی محصول
مشخصات فنی
| End 1 Size | 1/2, 1/4, 1/8, 10mm, 12mm, 3/8, 6mm, 8mm |
|---|---|
| End 1 Type | Female NPT, S-LOK Tube Fitting |
| End 2 Size | 1/2, 1/4, 1/8, 10mm, 12mm, 3/8, 6mm, 8mm |
| End 2 Type | Female NPT, S-LOK Tube Fitting |
| Body Material | Stainless Steel 316 |
| Max Pressure Rating | 6000 PSI (413 BAR) @100℉(37℃) |
| Seal Material | PTFE |
| Seat Material | PCTFE |
| Part NO | STBV-3B-F-2N-S6, STBV-3B-F-4N-S6, STBV-3B-S-10M-S6, STBV-3B-S-12M-S6, STBV-3B-S-4T-S6, STBV-3B-S-6M-S6, STBV-3B-S-6T-S6, STBV-3B-S-8M-S6, STBV-3B-S-8T-S6, STBV-F-2N-S6, STBV-F-4N-S6, STBV-F-8N-S6, STBV-S-10M-S6, STBV-S-12M-S6, STBV-S-4T-S6, STBV-S-6M-S6, STBV-S-6T-S6, STBV-S-8M-S6, STBV-S-8T-S6 |
| نوع شیرآلات | Ball&Plug |
