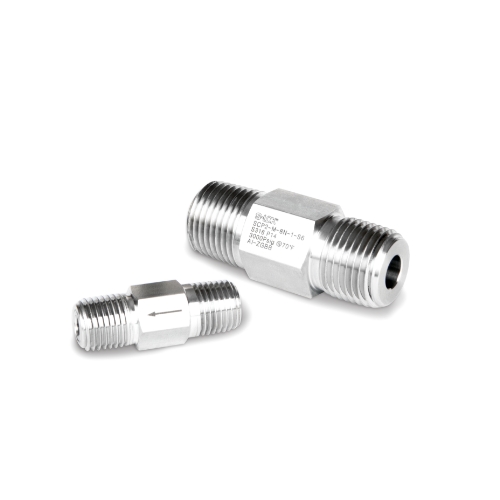

S-LOK Check&Relief Valves SCA Series
SCA30 Series, 1-Piece Adjustable Poppet Check Valve, Cracking Pressure Range 3 PSIG (0.21 BAR) to 50 PSIG (3.5 BAR), Male NPT 1/4in
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | End 1 Size | End 1 Type | End 2 Size | End 2 Type | Body Material | Max Pressure Rating | Seal Material |
|---|---|---|---|---|---|---|---|---|
| SCA1-M-4N-3-S6 |
|
1/4 | Male NPT | 1/4 | Male NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | VITON |
| SCA1-M-4R-3-S6 |
|
1/4 | Male PT | 1/4 | Male PT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | VITON |
| SCA1-F-4N-3-S6 |
|
1/4 | Female NPT | 1/4 | Female NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | VITON |
| SCA2-M-8N-3-S6 |
|
1/2 | Male NPT | 1/2 | Male NPT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | VITON |
| SCA2-M-8R-3-S6 |
|
1/2 | Male PT | 1/2 | Male PT | Stainless Steel 316 | 3000 PSI (206 BAR) @100℉(37℃) | VITON |
معرفی محصول
مشخصات فنی
| End 1 Size | 1/2, 1/4 |
|---|---|
| End 1 Type | Female NPT, Male NPT, Male PT |
| End 2 Size | 1/2, 1/4 |
| End 2 Type | Female NPT, Male NPT, Male PT |
| Body Material | Stainless Steel 316 |
| Max Pressure Rating | 3000 PSI (206 BAR) @100℉(37℃) |
| Seal Material | VITON |
| نوع شیرآلات | Check&Relief |
