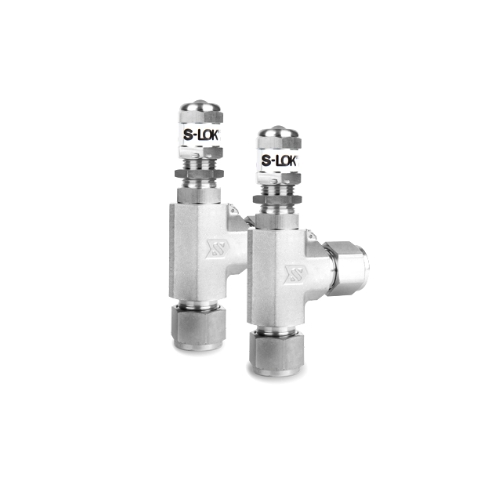

S-LOK Check&Relief Valves SRV60 Series
SRV60 Series, High Pressure Proportional Relief Valve, Cracking Pressure Range 50 PSIG (3.4 BAR) to 6000 PSIG (413 BAR), Tube O.D 1/4in
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | End 1 Size | End 1 Type | End 2 Size | End 2 Type | Body Material | Max Pressure Rating | Seal Material |
|---|---|---|---|---|---|---|---|---|
| SRV60-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-S-8M-S6 |
|
8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-S-8T-S6 |
|
1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-S-12M-S6 |
|
12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-MS-4N4T-S6 |
|
1/4 | Male NPT | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-MS-8N8T-S6 |
|
1/2 | Male NPT | 1/2 | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-MS-8N12M-S6 |
|
1/2 | Male NPT | 12mm | S-LOK Tube Fitting | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-MF-4N-S6 |
|
1/4 | Male NPT | 1/4 | Female NPT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-MF-4R-S6 |
|
1/4 | Male PT | 1/4 | Female PT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-MF-8N-S6 |
|
1/2 | Male NPT | 1/2 | Female NPT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
| SRV60-MF-8R-S6 |
|
1/2 | Male PT | 1/2 | Female PT | Stainless Steel 316 | 6000 PSI (413 BAR) @100℉(37℃) | VITON |
معرفی محصول
مشخصات فنی
| End 1 Size | 1/2, 1/4, 12mm, 6mm, 8mm |
|---|---|
| End 1 Type | Male NPT, Male PT, S-LOK Tube Fitting |
| End 2 Size | 1/2, 1/4, 12mm, 6mm, 8mm |
| End 2 Type | Female NPT, Female PT, S-LOK Tube Fitting |
| Body Material | Stainless Steel 316 |
| Max Pressure Rating | 6000 PSI (413 BAR) @100℉(37℃) |
| Seal Material | VITON |
| نوع شیرآلات | Check&Relief |
