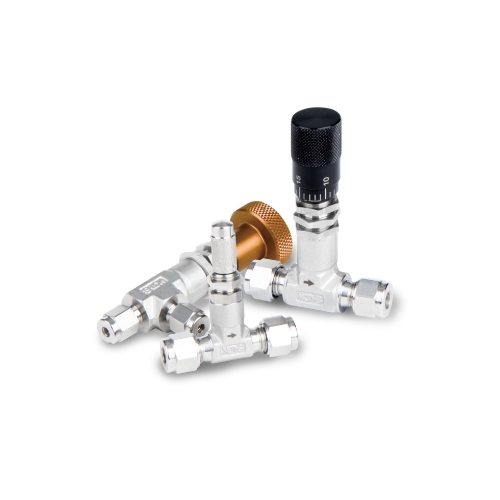

S-LOK Metering Valves SMTV Series
SMTV1 Series, Lower Pressure Metering Valve, Tube O.D 1/16in
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | End 1 Size | End 1 Type | End 2 Size | End 2 Type | Body Material | Max Pressure Rating | Part NO |
|---|---|---|---|---|---|---|---|---|
| SMTV1-S-1T-S6 |
|
1/16 | S-LOK Tube Fitting | 1/16 | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-1T-S6 |
| SMTV1-S-2T-S6 |
|
1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-2T-S6 |
| SMTV1-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-4T-S6 |
| SMTV1-S-3M-S6 |
|
3mm | S-LOK Tube Fitting | 3mm | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-3M-S6 |
| SMTV1-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-6M-S6 |
| SMTV2-S-2T-S6 |
|
1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-2T-S6 |
| SMTV2-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-4T-S6 |
| SMTV2-S-3M-S6 |
|
3mm | S-LOK Tube Fitting | 3mm | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-3M-S6 |
| SMTV2-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-6M-S6 |
| SMTV2-M-2N-S6 |
|
1/8 | Male NPT | 1/8 | Male NPT | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-M-2N-S6 |
| SMTV2-M-4N-S6 |
|
1/4 | Male NPT | 1/4 | Male NPT | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-M-4N-S6 |
| SMTV2-F-2N-S6 |
|
1/8 | Female NPT | 1/8 | Female NPT | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-F-2N-S6 |
| SMTV3-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV3-S-4T-S6 |
| SMTV3-S-6T-S6 |
|
3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV3-S-6T-S6 |
| SMTV3-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV3-S-6M-S6 |
| SMTV3-M-4N-S6 |
|
1/4 | Male NPT | 1/4 | Male NPT | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV3-M-4N-S6 |
| SMTV1-S-1T-A-S6 |
|
1/16 | S-LOK Tube Fitting | 1/16 | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-1T-A-S6 |
| SMTV1-S-2T-A-S6 |
|
1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-2T-A-S6 |
| SMTV1-S-4T-A-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-4T-A-S6 |
| SMTV1-S-3M-A-S6 |
|
3mm | S-LOK Tube Fitting | 3mm | S-LOK Tube Fitting | Stainless Steel 316 | 2000 PSI (137 BAR) @100℉(37℃) | SMTV1-S-3M-A-S6 |
| SMTV2-S-2T-A-S6 |
|
1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-2T-A-S6 |
| SMTV2-S-4T-A-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-4T-A-S6 |
| SMTV2-S-3M-A-S6 |
|
3mm | S-LOK Tube Fitting | 3mm | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-3M-A-S6 |
| SMTV2-S-6M-A-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-S-6M-A-S6 |
| SMTV2-M-2N-A-S6 |
|
1/8 | Male NPT | 1/8 | Male NPT | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-M-2N-A-S6 |
| SMTV2-M-4N-A-S6 |
|
1/4 | Male NPT | 1/4 | Male NPT | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-M-4N-A-S6 |
| SMTV2-F-2N-A-S6 |
|
1/8 | Female NPT | 1/8 | Female NPT | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV2-F-2N-A-S6 |
| SMTV3-S-4T-A-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV3-S-4T-A-S6 |
| SMTV3-S-6M-A-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 1000 PSI (69 BAR) @ 100℉(37℃) | SMTV3-S-6M-A-S6 |
| SMTVH-S-4T-S6 |
|
1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | Stainless Steel 316 | 5000 PSI (344 BAR) @100℉(37℃) | SMTVH-S-4T-S6 |
| SMTVH-S-6M-S6 |
|
6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | Stainless Steel 316 | 5000 PSI (344 BAR) @100℉(37℃) | SMTVH-S-6M-S6 |
| SMTVH-F-2N-S6 |
|
1/8 | Female NPT | 1/8 | Female NPT | Stainless Steel 316 | 5000 PSI (344 BAR) @100℉(37℃) | SMTVH-F-2N-S6 |
| SMTVH-F-4N-S6 |
|
1/4 | Female NPT | 1/4 | Female NPT | Stainless Steel 316 | 5000 PSI (344 BAR) @100℉(37℃) | SMTVH-F-4N-S6 |
معرفی محصول
مشخصات فنی
| End 1 Size | 1/16, 1/4, 1/8, 3/8, 3mm, 6mm |
|---|---|
| End 1 Type | Female NPT, Male NPT, S-LOK Tube Fitting |
| End 2 Size | 1/16, 1/4, 1/8, 3/8, 3mm, 6mm |
| End 2 Type | Female NPT, Male NPT, S-LOK Tube Fitting |
| Body Material | Stainless Steel 316 |
| Max Pressure Rating | 1000 PSI (69 BAR) @ 100℉(37℃), 2000 PSI (137 BAR) @100℉(37℃), 5000 PSI (344 BAR) @100℉(37℃) |
| Part NO | SMTV1-S-1T-A-S6, SMTV1-S-1T-S6, SMTV1-S-2T-A-S6, SMTV1-S-2T-S6, SMTV1-S-3M-A-S6, SMTV1-S-3M-S6, SMTV1-S-4T-A-S6, SMTV1-S-4T-S6, SMTV1-S-6M-S6, SMTV2-F-2N-A-S6, SMTV2-F-2N-S6, SMTV2-M-2N-A-S6, SMTV2-M-2N-S6, SMTV2-M-4N-A-S6, SMTV2-M-4N-S6, SMTV2-S-2T-A-S6, SMTV2-S-2T-S6, SMTV2-S-3M-A-S6, SMTV2-S-3M-S6, SMTV2-S-4T-A-S6, SMTV2-S-4T-S6, SMTV2-S-6M-A-S6, SMTV2-S-6M-S6, SMTV3-M-4N-S6, SMTV3-S-4T-A-S6, SMTV3-S-4T-S6, SMTV3-S-6M-A-S6, SMTV3-S-6M-S6, SMTV3-S-6T-S6, SMTVH-F-2N-S6, SMTVH-F-4N-S6, SMTVH-S-4T-S6, SMTVH-S-6M-S6 |
| نوع شیرآلات | Metering |
