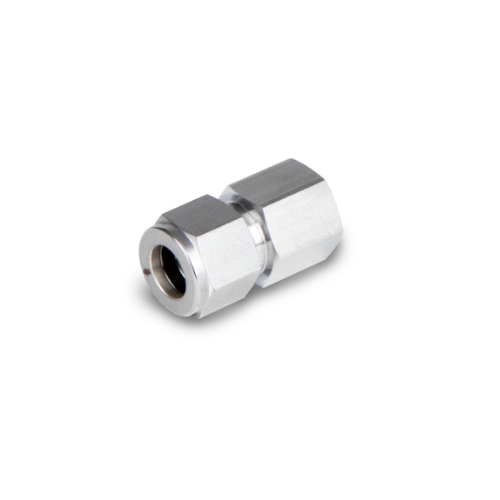

S-LOK Tube Fittings SCG
S-LOK Tube Fitting, Gauge Connector for Metal Gasket, Tube O.D 1/4in x 1/8in Female ISO Parallel
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | شکل اتصال | End 1 Size | End 1 Type | End 2 Size | End 2 Type | Body Material |
|---|---|---|---|---|---|---|---|
| SCG-4-2G-S6 |
|
Straights | 1/4 | S-LOK Tube Fitting | 1/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-4-4G-S6 |
|
Straights | 1/4 | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-4-6G-S6 |
|
Straights | 1/4 | S-LOK Tube Fitting | 3/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-4-8G-S6 |
|
Straights | 1/4 | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-5-4G-S6 |
|
Straights | 5/16 | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-5-8G-S6 |
|
Straights | 5/16 | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-6-4G-S6 |
|
Straights | 3/8 | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-6-6G-S6 |
|
Straights | 3/8 | S-LOK Tube Fitting | 3/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-6-8G-S6 |
|
Straights | 3/8 | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-8-4G-S6 |
|
Straights | 1/2 | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-8-6G-S6 |
|
Straights | 1/2 | S-LOK Tube Fitting | 3/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-8-8G-S6 |
|
Straights | 1/2 | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-3M-4G-S6 |
|
Straights | 3mm | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-6M-2G-S6 |
|
Straights | 6mm | S-LOK Tube Fitting | 1/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-6M-4G-S6 |
|
Straights | 6mm | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-6M-6G-S6 |
|
Straights | 6mm | S-LOK Tube Fitting | 3/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-6M-8G-S6 |
|
Straights | 6mm | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-8M-4G-S6 |
|
Straights | 8mm | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-8M-6G-S6 |
|
Straights | 8mm | S-LOK Tube Fitting | 3/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-8M-8G-S6 |
|
Straights | 8mm | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-10M-4G-S6 |
|
Straights | 10mm | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-10M-6G-S6 |
|
Straights | 10mm | S-LOK Tube Fitting | 3/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-10M-8G-S6 |
|
Straights | 10mm | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-12M-4G-S6 |
|
Straights | 12mm | S-LOK Tube Fitting | 1/4 | Female ISO Parallel | Stainless Steel 316 |
| SCG-12M-6G-S6 |
|
Straights | 12mm | S-LOK Tube Fitting | 3/8 | Female ISO Parallel | Stainless Steel 316 |
| SCG-12M-8G-S6 |
|
Straights | 12mm | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-20M-8G-S6 |
|
Straights | 20mm | S-LOK Tube Fitting | 1/2 | Female ISO Parallel | Stainless Steel 316 |
| SCG-22M-12G-S6 |
|
Straights | 22mm | S-LOK Tube Fitting | 3/4 | Female ISO Parallel | Stainless Steel 316 |
معرفی محصول
مشخصات فنی
| شکل اتصال | Straights |
|---|---|
| End 1 Size | 1/2, 1/4, 10mm, 12mm, 20mm, 22mm, 3/8, 3mm, 5/16, 6mm, 8mm |
| End 1 Type | S-LOK Tube Fitting |
| End 2 Size | 1/2, 1/4, 1/8, 3/4, 3/8 |
| End 2 Type | Female ISO Parallel |
| Body Material | Stainless Steel 316 |
