S-LOK Tube Fittings (Single Ferrule) SCOSO

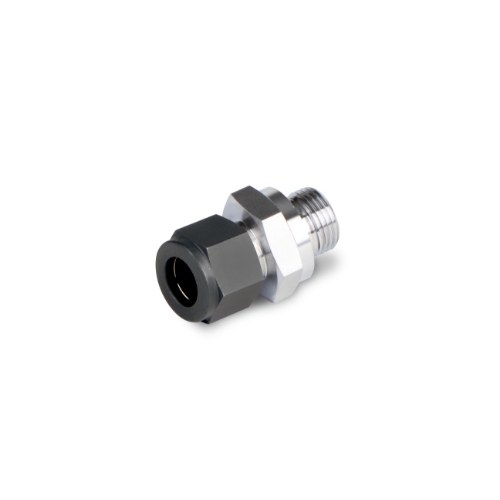

S-LOK Single Ferrule Tube Fitting, O-Seal SAE Thread Connector, Tube O.D 1/8in x 5/16-24 Male SAE Thread
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | شکل اتصال | End 1 Size | End 1 Type | End 2 Size | End 2 Type | Body Material |
|---|---|---|---|---|---|---|---|
| SCOSO-2-2U-S6 |
|
Straights | 1/8 | S-LOK Tube Fitting | 5/16-24 | Male SAE Thread | Stainless Steel 316 |
| SCOSO-3-3U-S6 |
|
Straights | 3/16 | S-LOK Tube Fitting | 3/8-24 | Male SAE Thread | Stainless Steel 316 |
| SCOSO-4-4U-S6 |
|
Straights | 1/4 | S-LOK Tube Fitting | 7/16-20 | Male SAE Thread | Stainless Steel 316 |
| SCOSO-5-5U-S6 |
|
Straights | 5/16 | S-LOK Tube Fitting | 1/2-20 | Male SAE Thread | Stainless Steel 316 |
| SCOSO-6-6U-S6 |
|
Straights | 3/8 | S-LOK Tube Fitting | 9/16-18 | Male SAE Thread | Stainless Steel 316 |
| SCOSO-8-8U-S6 |
|
Straights | 1/2 | S-LOK Tube Fitting | 3/4-16 | Male SAE Thread | Stainless Steel 316 |
| SCOSO-12-12U-S6 |
|
Straights | 3/4 | S-LOK Tube Fitting | 1-1/16-12 | Male SAE Thread | Stainless Steel 316 |
| SCOSO-16-16U-S6 |
|
Straights | 1 | S-LOK Tube Fitting | 1-5/16-12 | Male SAE Thread | Stainless Steel 316 |
معرفی محصول
مشخصات فنی
| شکل اتصال | Straights |
|---|---|
| End 1 Size | 1, 1/2, 1/4, 1/8, 3/16, 3/4, 3/8, 5/16 |
| End 1 Type | S-LOK Tube Fitting |
| End 2 Size | 1-1/16-12, 1-5/16-12, 1/2-20, 3/4-16, 3/8-24, 5/16-24, 7/16-20, 9/16-18 |
| End 2 Type | Male SAE Thread |
| Body Material | Stainless Steel 316 |
