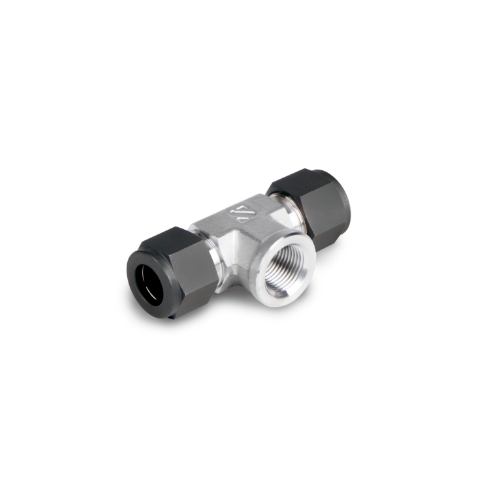

S-LOK Tube Fittings (Single Ferrule) STBFO
S-LOK Single Ferrule Tube Fitting, Female Branch Tee, Tube O.D 1/8in x Tube O.D 1/8in x 1/8in Male NPT
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | شکل اتصال | End 1 Size | End 1 Type | End 2 Size | End 2 Type | End 3 Size | End 3 Type | Body Material | Part NO |
|---|---|---|---|---|---|---|---|---|---|---|
| STBFO-2-2N-S6 |
|
Tees | 1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-2-2N-S6 |
| STBFO-2-4N-S6 |
|
Tees | 1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-2-4N-S6 |
| STBFO-3-2N-S6 |
|
Tees | 3/16 | S-LOK Tube Fitting | 3/16 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-3-2N-S6 |
| STBFO-4-2N-S6 |
|
Tees | 1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-4-2N-S6 |
| STBFO-4-4N-S6 |
|
Tees | 1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-4-4N-S6 |
| STBFO-4-8N-S6 |
|
Tees | 1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-4-8N-S6 |
| STBFO-5-2N-S6 |
|
Tees | 5/16 | S-LOK Tube Fitting | 5/16 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-5-2N-S6 |
| STBFO-5-4N-S6 |
|
Tees | 5/16 | S-LOK Tube Fitting | 5/16 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-5-4N-S6 |
| STBFO-6-2N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-6-2N-S6 |
| STBFO-6-4N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-6-4N-S6 |
| STBFO-6-6N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBFO-6-6N-S6 |
| STBFO-6-8N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-6-8N-S6 |
| STBFO-8-4N-S6 |
|
Tees | 1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-8-4N-S6 |
| STBFO-8-6N-S6 |
|
Tees | 1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBFO-8-6N-S6 |
| STBFO-8-8N-S6 |
|
Tees | 1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-8-8N-S6 |
| STBFO-10-6N-S6 |
|
Tees | 5/8 | S-LOK Tube Fitting | 5/8 | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBFO-10-6N-S6 |
| STBFO-10-8N-S6 |
|
Tees | 5/8 | S-LOK Tube Fitting | 5/8 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-10-8N-S6 |
| STBFO-12-8N-S6 |
|
Tees | 3/4 | S-LOK Tube Fitting | 3/4 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-12-8N-S6 |
| STBFO-12-12N-S6 |
|
Tees | 3/4 | S-LOK Tube Fitting | 3/4 | S-LOK Tube Fitting | 3/4 | Female NPT | Stainless Steel 316 | STBFO-12-12N-S6 |
| STBFO-14-12N-S6 |
|
Tees | 3/4 | S-LOK Tube Fitting | 3/4 | S-LOK Tube Fitting | 3/4 | Female NPT | Stainless Steel 316 | STBFO-14-12N-S6 |
| STBFO-16-12N-S6 |
|
Tees | 1 | S-LOK Tube Fitting | 1 | S-LOK Tube Fitting | 3/4 | Female NPT | Stainless Steel 316 | STBFO-16-12N-S6 |
| STBFO-16-16N-S6 |
|
Tees | 1 | S-LOK Tube Fitting | 1 | S-LOK Tube Fitting | 1 | Female NPT | Stainless Steel 316 | STBFO-16-16N-S6 |
| STBFO-6M-2N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-6M-2N-S6 |
| STBFO-6M-4N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-6M-4N-S6 |
| STBFO-6M-6N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBFO-6M-6N-S6 |
| STBFO-6M-8N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-6M-8N-S6 |
| STBFO-8M-2N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-8M-2N-S6 |
| STBFO-8M-4N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-8M-4N-S6 |
| STBFO-8M-6N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBFO-8M-6N-S6 |
| STBFO-8M-8N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-8M-8N-S6 |
| STBFO-10M-2N-S6 |
|
Tees | 10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBFO-10M-2N-S6 |
| STBFO-10M-4N-S6 |
|
Tees | 10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-10M-4N-S6 |
| STBFO-10M-6N-S6 |
|
Tees | 10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBFO-10M-6N-S6 |
| STBFO-12M-4N-S6 |
|
Tees | 12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBFO-12M-4N-S6 |
| STBFO-12M-6N-S6 |
|
Tees | 12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBFO-12M-6N-S6 |
| STBFO-12M-8N-S6 |
|
Tees | 12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-12M-8N-S6 |
| STBFO-16M-8N-S6 |
|
Tees | 16mm | S-LOK Tube Fitting | 16mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBFO-16M-8N-S6 |
معرفی محصول
مشخصات فنی
| شکل اتصال | Tees |
|---|---|
| End 1 Size | 1, 1/2, 1/4, 1/8, 10mm, 12mm, 16mm, 3/16, 3/4, 3/8, 5/16, 5/8, 6mm, 8mm |
| End 1 Type | S-LOK Tube Fitting |
| End 2 Size | 1, 1/2, 1/4, 1/8, 10mm, 12mm, 16mm, 3/16, 3/4, 3/8, 5/16, 5/8, 6mm, 8mm |
| End 2 Type | S-LOK Tube Fitting |
| End 3 Size | 1, 1/2, 1/4, 1/8, 3/4, 3/8 |
| End 3 Type | Female NPT |
| Body Material | Stainless Steel 316 |
| Part NO | STBFO-10-6N-S6, STBFO-10-8N-S6, STBFO-10M-2N-S6, STBFO-10M-4N-S6, STBFO-10M-6N-S6, STBFO-12-12N-S6, STBFO-12-8N-S6, STBFO-12M-4N-S6, STBFO-12M-6N-S6, STBFO-12M-8N-S6, STBFO-14-12N-S6, STBFO-16-12N-S6, STBFO-16-16N-S6, STBFO-16M-8N-S6, STBFO-2-2N-S6, STBFO-2-4N-S6, STBFO-3-2N-S6, STBFO-4-2N-S6, STBFO-4-4N-S6, STBFO-4-8N-S6, STBFO-5-2N-S6, STBFO-5-4N-S6, STBFO-6-2N-S6, STBFO-6-4N-S6, STBFO-6-6N-S6, STBFO-6-8N-S6, STBFO-6M-2N-S6, STBFO-6M-4N-S6, STBFO-6M-6N-S6, STBFO-6M-8N-S6, STBFO-8-4N-S6, STBFO-8-6N-S6, STBFO-8-8N-S6, STBFO-8M-2N-S6, STBFO-8M-4N-S6, STBFO-8M-6N-S6, STBFO-8M-8N-S6 |
