S-LOK Tube Fittings STBF

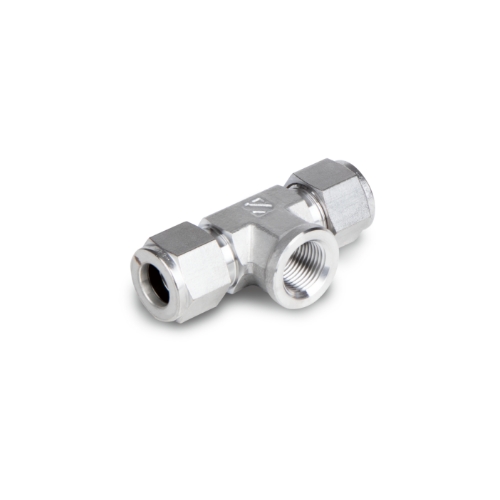

S-LOK Tube Fitting, Female Branch Tee, Tube O.D 1/8in x Tube O.D 1/8in x 1/8in Male NPT
کره جنوبی
ضمانت ۱۲ ماهه
موجود در انبار - تحویل ۱ روزه
| شناسه کالا | تعداد | شکل اتصال | End 1 Size | End 1 Type | End 2 Size | End 2 Type | End 3 Size | End 3 Type | Body Material | Part NO |
|---|---|---|---|---|---|---|---|---|---|---|
| STBF-2-2N-S6 |
|
Tees | 1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-2-2N-S6 |
| STBF-2-4N-S6 |
|
Tees | 1/8 | S-LOK Tube Fitting | 1/8 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-2-4N-S6 |
| STBF-3-2N-S6 |
|
Tees | 3/16 | S-LOK Tube Fitting | 3/16 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-3-2N-S6 |
| STBF-4-2N-S6 |
|
Tees | 1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-4-2N-S6 |
| STBF-4-4N-S6 |
|
Tees | 1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-4-4N-S6 |
| STBF-4-8N-S6 |
|
Tees | 1/4 | S-LOK Tube Fitting | 1/4 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-4-8N-S6 |
| STBF-5-2N-S6 |
|
Tees | 5/16 | S-LOK Tube Fitting | 5/16 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-5-2N-S6 |
| STBF-5-4N-S6 |
|
Tees | 5/16 | S-LOK Tube Fitting | 5/16 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-5-4N-S6 |
| STBF-6-2N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-6-2N-S6 |
| STBF-6-4N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-6-4N-S6 |
| STBF-6-6N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBF-6-6N-S6 |
| STBF-6-8N-S6 |
|
Tees | 3/8 | S-LOK Tube Fitting | 3/8 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-6-8N-S6 |
| STBF-8-4N-S6 |
|
Tees | 1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-8-4N-S6 |
| STBF-8-6N-S6 |
|
Tees | 1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBF-8-6N-S6 |
| STBF-8-8N-S6 |
|
Tees | 1/2 | S-LOK Tube Fitting | 1/2 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-8-8N-S6 |
| STBF-10-6N-S6 |
|
Tees | 5/8 | S-LOK Tube Fitting | 5/8 | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBF-10-6N-S6 |
| STBF-10-8N-S6 |
|
Tees | 5/8 | S-LOK Tube Fitting | 5/8 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-10-8N-S6 |
| STBF-12-8N-S6 |
|
Tees | 3/4 | S-LOK Tube Fitting | 3/4 | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-12-8N-S6 |
| STBF-12-12N-S6 |
|
Tees | 3/4 | S-LOK Tube Fitting | 3/4 | S-LOK Tube Fitting | 3/4 | Female NPT | Stainless Steel 316 | STBF-12-12N-S6 |
| STBF-14-12N-S6 |
|
Tees | 3/4 | S-LOK Tube Fitting | 3/4 | S-LOK Tube Fitting | 3/4 | Female NPT | Stainless Steel 316 | STBF-14-12N-S6 |
| STBF-16-12N-S6 |
|
Tees | 1 | S-LOK Tube Fitting | 1 | S-LOK Tube Fitting | 3/4 | Female NPT | Stainless Steel 316 | STBF-16-12N-S6 |
| STBF-16-16N-S6 |
|
Tees | 1 | S-LOK Tube Fitting | 1 | S-LOK Tube Fitting | 1 | Female NPT | Stainless Steel 316 | STBF-16-16N-S6 |
| STBF-6M-2N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-6M-2N-S6 |
| STBF-6M-4N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-6M-4N-S6 |
| STBF-6M-6N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBF-6M-6N-S6 |
| STBF-6M-8N-S6 |
|
Tees | 6mm | S-LOK Tube Fitting | 6mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-6M-8N-S6 |
| STBF-8M-2N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-8M-2N-S6 |
| STBF-8M-4N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-8M-4N-S6 |
| STBF-8M-6N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBF-8M-6N-S6 |
| STBF-8M-8N-S6 |
|
Tees | 8mm | S-LOK Tube Fitting | 8mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-8M-8N-S6 |
| STBF-10M-2N-S6 |
|
Tees | 10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | 1/8 | Female NPT | Stainless Steel 316 | STBF-10M-2N-S6 |
| STBF-10M-4N-S6 |
|
Tees | 10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-10M-4N-S6 |
| STBF-10M-6N-S6 |
|
Tees | 10mm | S-LOK Tube Fitting | 10mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBF-10M-6N-S6 |
| STBF-12M-4N-S6 |
|
Tees | 12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | 1/4 | Female NPT | Stainless Steel 316 | STBF-12M-4N-S6 |
| STBF-12M-6N-S6 |
|
Tees | 12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | 3/8 | Female NPT | Stainless Steel 316 | STBF-12M-6N-S6 |
| STBF-12M-8N-S6 |
|
Tees | 12mm | S-LOK Tube Fitting | 12mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-12M-8N-S6 |
| STBF-16M-8N-S6 |
|
Tees | 16mm | S-LOK Tube Fitting | 16mm | S-LOK Tube Fitting | 1/2 | Female NPT | Stainless Steel 316 | STBF-16M-8N-S6 |
معرفی محصول
مشخصات فنی
| شکل اتصال | Tees |
|---|---|
| End 1 Size | 1, 1/2, 1/4, 1/8, 10mm, 12mm, 16mm, 3/16, 3/4, 3/8, 5/16, 5/8, 6mm, 8mm |
| End 1 Type | S-LOK Tube Fitting |
| End 2 Size | 1, 1/2, 1/4, 1/8, 10mm, 12mm, 16mm, 3/16, 3/4, 3/8, 5/16, 5/8, 6mm, 8mm |
| End 2 Type | S-LOK Tube Fitting |
| End 3 Size | 1, 1/2, 1/4, 1/8, 3/4, 3/8 |
| End 3 Type | Female NPT |
| Body Material | Stainless Steel 316 |
| Part NO | STBF-10-6N-S6, STBF-10-8N-S6, STBF-10M-2N-S6, STBF-10M-4N-S6, STBF-10M-6N-S6, STBF-12-12N-S6, STBF-12-8N-S6, STBF-12M-4N-S6, STBF-12M-6N-S6, STBF-12M-8N-S6, STBF-14-12N-S6, STBF-16-12N-S6, STBF-16-16N-S6, STBF-16M-8N-S6, STBF-2-2N-S6, STBF-2-4N-S6, STBF-3-2N-S6, STBF-4-2N-S6, STBF-4-4N-S6, STBF-4-8N-S6, STBF-5-2N-S6, STBF-5-4N-S6, STBF-6-2N-S6, STBF-6-4N-S6, STBF-6-6N-S6, STBF-6-8N-S6, STBF-6M-2N-S6, STBF-6M-4N-S6, STBF-6M-6N-S6, STBF-6M-8N-S6, STBF-8-4N-S6, STBF-8-6N-S6, STBF-8-8N-S6, STBF-8M-2N-S6, STBF-8M-4N-S6, STBF-8M-6N-S6, STBF-8M-8N-S6 |
